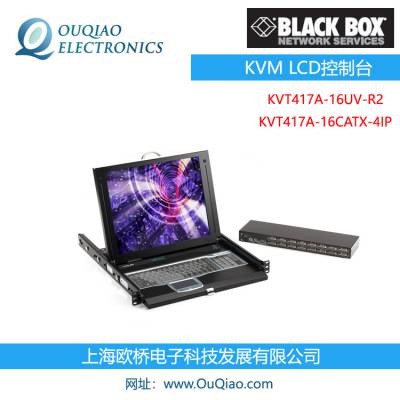

KVT417A-16UV-R2 BLACKBOX KVT417A-16CATX-4IP KVM LCD控制台 美国Black Box 搭建地铁项目

品牌：BLACKBOX

类别：KVM LCD控制台

型号：KVT417A-16UV-R2 KVT417A-16CATX-4IP

品牌介绍：

Black Box是一家全球数字基础设施集成商，为美国、欧洲、印度、亚太、中东和拉丁美洲的企业提供网络和系统集成服务

和解决方案、支持服务和技术产品，在全球拥有约4000名专业人员。

Black Box在网络集成、数字连接基础设施、数据中心扩建、现代工作场所和网络安全方面为各行各业的企业提供强大的服务，

包括金融服务、技术、医疗保健、零售、机场等公共服务；制造业和其他行业。

产品介绍：

ServTray KVM LCD控制台托盘和交换机-17英寸，16端口，单轨，VGA，PS/2，USB

在1U中安装机架式键盘、显示器和鼠标以及KVM开关模块。

1U 17英寸液晶控制台单元

内置16端口VGA KVM切换器

支持VGA和DisplayPort视频，带USB或PS/2键盘和鼠标

支持60 Hz时高达1280x1024的视频分辨率

拉出带有吸引人的前面板的托盘，以便在不使用时隐藏设备

22.75英寸长通用后导轨

自动感应100至240-VAC电源

套件不包括CPU电缆

General

Active Display Area 10.6"H x 13.3"W (27 x 33.8 cm)

CE Approval Yes

Contrast Ratio 450:1

Display Color 262 K colors

Input Signal Type RBG analog, H/V separate

Operating Environment Temperature: 32 to 122° F (0 to 50° C); Humidity: 95%

Power 12 VDC (from external 100-to 240-VAC power adapter), 47 to 63 Hz

Resolution 1280 x 1024 at 60 Hz

Standards ServTray Complete: FCC; Power: UL? and TUV

Item Specifications

Connectors (1) Centronics (Male)

Dimensions 1.75-in. H (1U) x 17-in. W x 19.5 to 39.5-in. D (4.4 x 43.2 x 48.5 to 100.3-cm)

Weight 23-lb. (10.44-kg)
