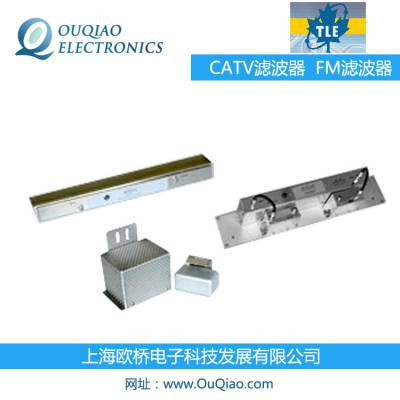

TinLee CFAL CATV滤波器 带通 FM滤波器 有线电视频道 tinlee TLE滤波器
品牌：Tin Lee Electronics
类别：CATV滤波器 FM滤波器
型号：CFAL and CFAS
公司介绍：
Tin Lee Electronics有限公司生产有线电视、VHF/UHF和FM接收及射频通信专用滤波器，以及电视/FM前端和信号分配系统产品。
TLE提供：
高品质产品
专为满足您的需求而设计的特定应用程序产品
我们所有产品的竞争价格
经验丰富的技术援助
为TV/FM/RF行业设计的广泛产品
内部生产，可快速交付并缩短交付周期
严格的质量控制，确保可靠性
产品简介：
CATV滤波器的工作带宽为5 MHz至1220 MHz，带通和带阻滤波器的工作频率为6 MHz至8 MHz，可达1220 MHz。此外，定制的CATV带通和阻滤波器的带宽为192 MHz，工作频率为1800 MHz。
CATV滤波器和陷波器为NTSC信道/频率标准，75欧姆阻抗，带F型母连接器。它们可以根据不同的带宽、阻抗和连接器进行修改。
这些滤波器具有高选择性、高衰减和低通带纹波。
可进行自定义。请咨询。示例配置：PAL（8 MHz）/BNC/50欧姆。
提供了许多滤波器和陷波器的生产曲线图，以说明典型的频率响应
要参考CATV或广播频道或频率，请单击顶部菜单栏上的“频率图”以查看NTSC频率图
Adjacent Channel Bandpass (any channel from 5 to 250 MHz)
CFAL and CFAS
Model CFAL and CFAS are designed to pass one specific TV channel, reject the adjacent channels, and all out-of -band frequencies. Channels available (CATV): T7 - T13, 2 - 13, A5 - A1, A14 - I22, 23 - 30, and TV-IF (41 to 47 MHz). Available for NTSC and ATSC system.
Operating Bandwidth: 5 to 750 MHz
Passband loss:<3.5 dB (4 to 5dB at band edges)
Return Loss:15 dB typical (except band edges)
CFAL- rejection: >30 dB on adjacent carrier, > 20 dB on rest of channel, > 35 dB out-of-band
CFAS (outdoor version of CFAL) - rejection: > 25 dB on adjacent carrier, and >15 dB on rest of channel, > 30 dB out-of -band
Custom passband: any frequency band (2 to 16 MHz wide) within 5 to 250 MHz (e.g., CFAL-ch.14 -16)
Both models are also available in 50 ohms (BNC)
Example Graphs
CFAL-chs 8, T10, CFAL-ch.14 -16
其它相关型号：
CF7W, CF7W HR Wide Non-Adjacent Bandpass Filters for Off-the-Air TV and LTE 700 MHz bands (5 to 900 MHz)
CF7W-VHF, UHF Wide Bandpass filters for Off-the Air VHF, VHF-UHF, UHF
CFAL Single Channel Adjacent Bandpass Filter
(CATV: T7 to T13, IF, 2 to 25)
BP7 Single Channel Adjacent Bandpass (CATV: 14 to 85)
VF7-UHF Frequency Tunable UHF Single Channel Bandpass
VF7-ch.7-13 Frequency Tunable Single Channel VHF Bandpass
CF7 Single Channel Semi-Adjacent Bandpass Filter
(CATV, VHF and UHF)
BP7-UHC UHF/Hyperband Bandpass Filter for UHF Chs 14-69, CATV chs 62-125, LTE 700 MHz block (A,B or C)
NF7 and VF7 Narrow 0.5 MHz and 2 MHz Bandpass Filter (5- 450 MHz)
BP7-CEW Multiple Channel Adjacent Bandpass Filter (5- 600 MHz)
