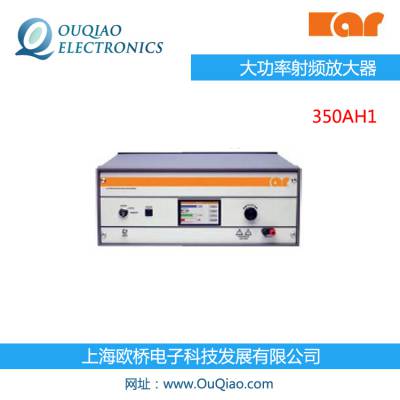

AR 350AH1 功率放大器 arworld

品牌：AR

型号：350AH1

   AR 350AH1型放大器是一种便携式、独立、风冷、宽带、固态放大器单元设计用于瞬时带宽、高增益和中等功率输出的实验室应用是必需的。当与射频扫描发生器一起使用时，350AH1将提供高达350瓦的输出权力。

350AH1产品详情：

350 Watt CW, 10 Hz - 1 MHz (w/ DCP, IEEE-488, RS-232, USB and Ethernet interfaces )

SPECIFICATIONS, MODEL 350AH1

OPERATION ................................................................. Class AB Linear

FREQUENCY RESPONSE ............................................... 10Hz–1 MHz instantaneously

POWER OUTPUT (1.79 Ohm load)

CW, Minimum ....................................................... 350 watts, 10Hz–300kHz

350–55 watts, 300kHz–1MHz

Voltage Output, Minimum ...................................... 25 Vrms, 10Hz–300kHz

25-10 Vrms, 300kHz–1MHz

Current Output, Minimum ...................................... 14 Arms, 10Hz–300kHz

14–5.5 Arms, 300kHz–1MHz

FLATNESS ..................................................................... ±1.0 dB, 10Hz–300kHz

±4.0 dB, 300kHz–1MHz

GAIN (POWER) ............................................................. 47 dB minimum, 10Hz–300kHz

39 dB minimum, 300kHz–1MHz

GAIN CONTROL RANGE .............................................. 15 dB minimum

INPUT SIGNAL 0–2 Vrms

INPUT IMPEDANCE ....................................................... 600 ohms typical

OUTPUT IMPEDANCE ...................................................<1Ω typical

MISMATCH TOLERANCE .............................................. *** of rated power without fail.

MODULATION CAPABILITY ........................................... Will faithfully reproduce AM, FM, or

pulse modulation appearing on the input

signal

PRIMARY POWER .......................................................... 90–260 VAC

47 to 63 Hz, single phase, 1200 watts maximum

CONNECTORS

RF INPUT ............................................................... Type BNC female

RF OUTPUT ........................................................... 5-way binding posts

REMOTE CONTROL

IEEE-488 ............................................................. 24 pin female

RS-232 ............................................................... 9 pin subminiature D (female)

USB .................................................................... Type B (female)

Ethernet .............................................................. RJ-45

REMOTE INTERLOCK .................................................... 15 pin subminiature D

COOLING .................................................................... Forced air (self contained fans)

其它相关产品：

350AH1   Front Panel   Yes   25 kg (55.0 lb)     50.3 x 19.9 x 37.6 cm 19.8 x 7.85 x 14.8 in

350AH1M1 Rear Panel     No   18.2 kg (40.0 lb)   48.3 x 17.8 x 37.6 cm 19.0 x 7.0 x 14.8 in

350AH1M2 Rear Panel    Yes   25 kg (55.0 lb)     50.3 x 19.9 x 37.6 cm 19.8 x 7.85 x 14.8 in

350AH1M3 Front Panel    No   18.2 kg (40.0 lb)   48.3 x 17.8 x 37.6 cm 19.0 x 7.0 x 14.8 in
